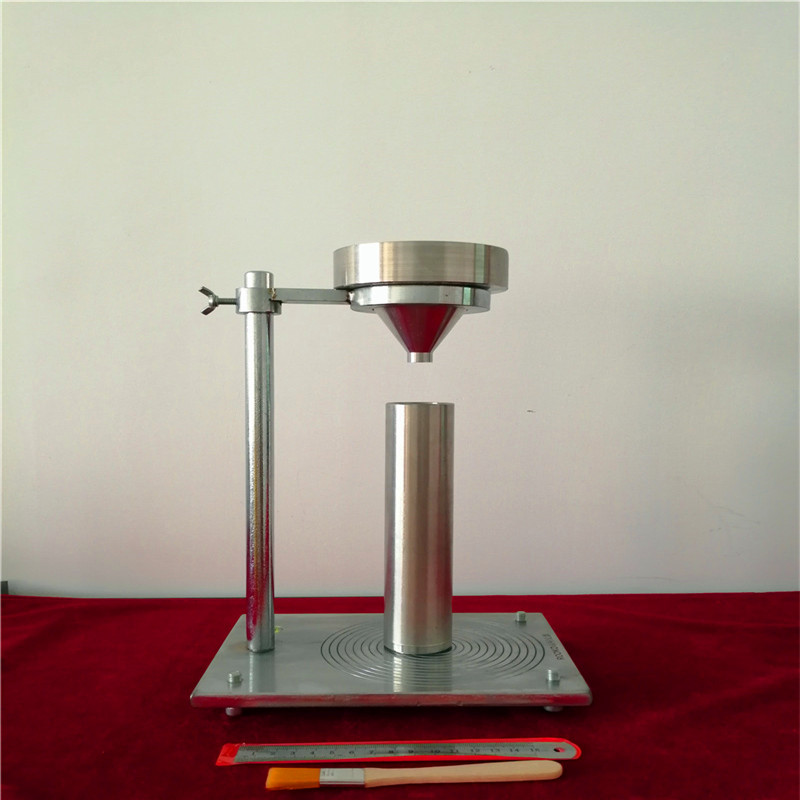

PY6104氧化铝松装密度测定仪

PY6104 Aluminium oxide loose density densimeter

一．参照标准According to the standard ：

GB/T 6609.25-2004《氧化铝化学分析方法和物理性能测定方法松装密度的测定》规范。氧化铝化学分析方法和物理性能测定方法 第25部分松装密度的测定

the technical specification is in accordance with GB/T 6609.25-2004 《method of chemical analysis of alumina and the measurement of the density of the method of physical performance》.The method of chemical analysis of alumina and the measurement method of physical performance in part 25 of Measurement of loose density

二．参数资料Technical Parameters

漏斗：口内径100mm，锥度60º，出料口内经6mm。

Funnel: inner diameter 100mm, taper 60º, inner diameter of discharge outlet 6mm.

量筒： 约200ml，内径与内高之比1：6，底座外径70mm

Cylinder: 200ml,the  ratio of inner diameter to inner height is 1：6, base outer diameter 70mm.

材质Material：不锈钢材质Stainless steel
