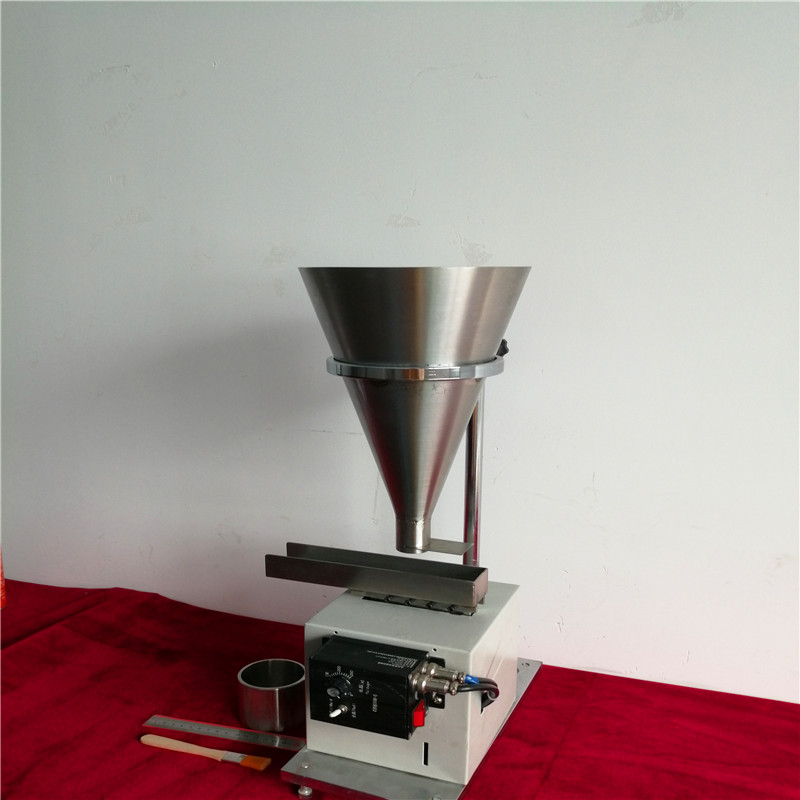

PY6106A微粉堆积密度测定仪

PY6106AMicropowder bulk density tester

一．      参照标准standard：

ISO9136-2：1999（E）《磨料--堆积密度的测定--：微粉》

According to the international standard ISO9136-2:19 99 (E), the technical requirements for” the measurement of the bulk density of the abrasive material,

工作原理：将待测的微粉装入漏斗，微粉在自身的堆积作用下处于堆积状态。当电磁振荡器启动后，微粉在电磁振动的作用下，途径流入测量桶中，将落入到测量筒中的微粉刮平，在天平上称取刮平后测量筒中的微粉质量，再除以测量筒的容积，就可以测出待测微粉的堆积密度

Working principle : Place the tested micropowder in the funnel, and the micropowder will be stable under its own accumulation.When start the electromagnetic oscillator, under the action of electromagnetic vibration, micro powder will follow into the  measurement cylinder in particular ways and methods, Scrape the  micropowder which  in measuring cylinder and make it  leveling , weight the micropowder left in the measurement cylinder after leveling on the balance scale , then divided by the volume of measuring cylinder, your can measure the bulk density of powder under test

二．参数资料Parameters：

漏斗材质：不锈钢；Funnel material: stainless steel;

漏斗尺寸：高度290mm；上口直径190mm；出料口内径：28mm；出料口高度：38mm

Funnel size: height 290mm, upper diameter 190mm, outlet inner diameter: 28mm, outlet height: 38mm

振动槽材质：不锈钢Vibrating trough material: stainless steel

振动槽尺寸：（210mm×40mm×30mm）±1mm

Vibrating trough dimensions: （210mm×40mm×30mm）±1mm

测量筒尺寸：内径64mm； 内高度62.2mm

Measuring cylinder dimensions: inner diameter 64mm, inner height 62.2mm.

测量筒容积： (200±0.5) cm3

Measuring cylinder volume: (200±0.5) cm3

测量误差：≤±0.02g/cm3

Measurement error: ≤±0.02g/cm3

漏斗下口内径：28mm；量筒容积：200ml ; 漏斗出料口高度：38mm；被测微粉下落高度：140mm.

The inner diameter of funnel lower opening:28mm, cylinder volume: 200ml, funnel outlet height: 38mm, the dropping height of the measured powder: 140mm.
